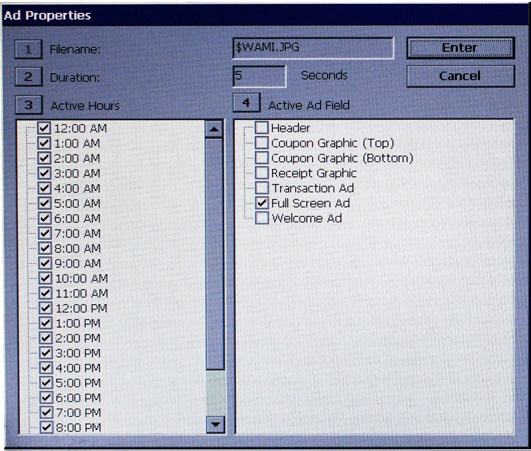

This is the name of the Bitmap graphic file that will be displayed at the times and in the locations specified by the duration, active hours, and active Ad fields properties. This file was selected in the Add New/Browse dialog.

By returning to the Browse screen, a different filename can be selected.

This is the number of seconds the ad will display on the screen. The value must be between 0 and 99999 seconds. If the ad file is a motion graphic or video and 0 is selected, the ad will be displayed for the actual playing time of the file.

To set the time, press 2 on the keypad to bring up a data entry dialog box. Enter the duration in seconds.

By default, the graphic will be displayed every hour of the day. To restrict the display of the graphic to the particular hours of the day, leave a checkmark next to the hour you want to display the graphic. Remove the checkmark from those hours in which you do not want the graphic displayed.

To configure the active hours for the correct Ad graphic, press 3 to move the highlight bar to the first selection in the active hours window, then use the arrow (< and >) keys to move up and down in the list.

Press CTRL on the keypad to add or remove a checkmark.

Select the location(s) where the Ad graphic will be displayed and/or printed.

(The optimum size in pixels for each graphic is shown in parenthesis to the right of the graphic name)

To configure the Active Ad Field for the current ad graphic, press 4 to move a highlight bar to the first selection in the Active Ad Field window, then use the arrow keys (< and >) to move up and down in the list.

Press CTRL to add or remove a checkmark.
