To delete a graphic:

Use the arrow (< and >) keys to highlight the graphic you want to remove.

Press 2.

A confirmation dialog appears. Press ENTER to delete the highlighted entry.

The Edit function allows you to change the Ad Properties (Duration, Active Hours, or Active Ad Field) of the selected Ad graphic.

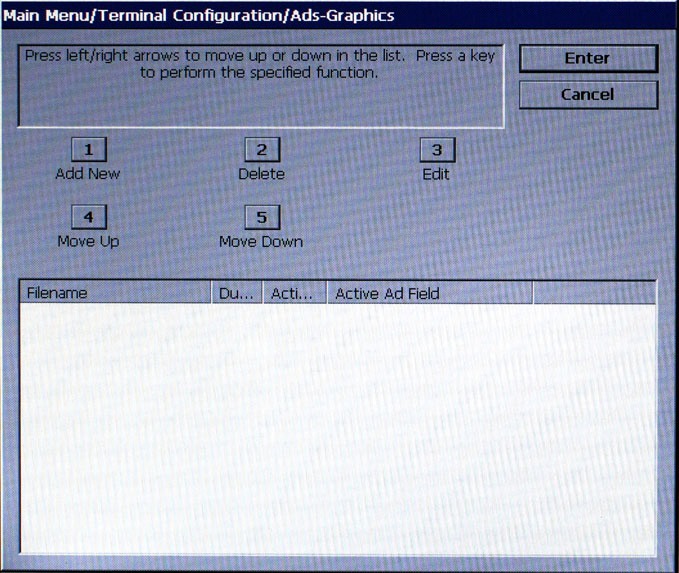

With the Ads/Graphics main dialog displayed, use the arrow (< and >) keys to highlight an ad entry in the list.

Press 3 on the keypad to bring up the Ad Properties dialog which you will use to edit the ad.

The Ad Properties screen is the same as that displayed for Add New.

The order in which multiple ad graphics are displayed on the LCD screen is determined by their arrangement in the Ads/Graphics display list. For example, assume the following items are listed, in the order shown:

store01

promo06

movieclip10

This means that store01 will be shown first, promo06 will be shown second and movieclip10 will be shown third. Then the sequence will repeat.

If you want movieclip10 to be shown before promo06 so that it appears before promo06, move it upward in the list. To accomplish this, first highlight movieclip10 using the arrow (< and >) keys. Next, press 4 (Move Up) once to move the entry up one position in the order. The movieclip10 entry will replace promo06 in the second position and promo06 will be pushed down to the third position.

The new order will be:

store01

movieclip10

promo06

If you want store01 to be shown after promo06 so that it appears after promo06, move it downward in the list. To accomplish this, first highlight store01 using the arrow keys. Next, press 5 (Move Down) once to move the entry down one position in the order. The store01 entry will replace promo06 in the second position and promo06 will be moved up to the first position. The new order will be:

promo06

store01

movieclip10
