Use the following keys on
the keyboard to navigate this dialog:
° CANCEL - Aborts the
current operation and acts like the Esc
key on the PC keyboard.
° CLEAR - Moves to the
next field in a dialog box and acts like the Tab
key on the PC keyboard.
° ENTER - Accepts the
current entry or selection and acts like the Enter
or Return key on the PC keyboard.
° CTRL - This is the
unlabeled (blank) key in the lower-right corner of the keypad, which
is used to select alphabetic characters during text entry. This key
acts like the Space bar on
the PC keyboard to check or uncheck a checkbox control.
° Arrow
Keys (< and >)
- Press these keys to cycle through the available options in an area.
° F4 - Press this function
key to display a drop down list of options for the selected field.
° F8 - Press this function
key to display an on-screen keypad for entering alphanumeric data
into the selected field.

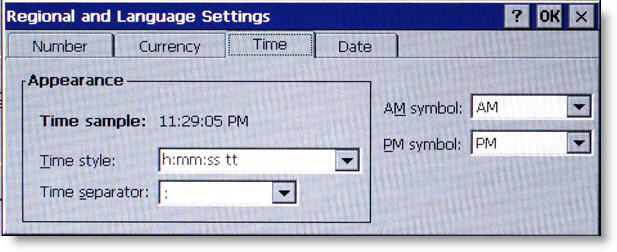

Time
style - It can be set as one (1) or two (2) digits (e.g., 4
or 04), using either the 12 or 24-hour clock, e.g., 4:00 in the afternoon
can be displayed as 4:00:00 PM (with or without a preceding 0) or
16:00:00). A sample of the selected format is displayed above this
field.
Time
separator - The colon (:) is the default time separator (e.g.,
4:00:00 PM).
