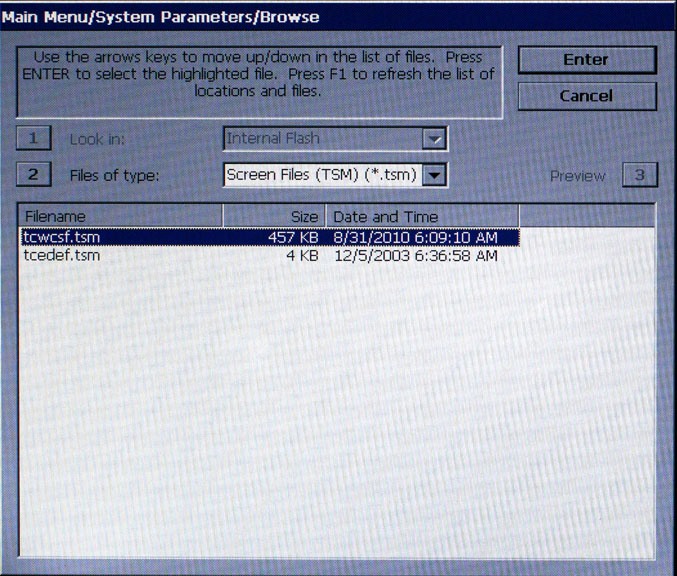

The Select Screen File function uses a browse dialog to locate and select the Triton screen manager file that will determine the appearance and functionality of the customer screens. The Browse controls are:

Look in: - Press 1 to cycle through the available locations for screen files (e.g., Internal Flash or an external memory device). Be sure a USB drive is plugged into the main board if using this as the source.

Files of type: Press 2 to select the file type desired. The default file type is Triton Screen Manager (.TSM).

The file list shows the available screen manager files in the selected location. The filename, size, and date/time attributes are shown for each file.

Use the arrow (< and >) keys on the keypad to highlight a file. Press ENTER to select the highlighted screen file. You will be prompted that you selected screen file <**>. Example

Press ENTER. The terminal will restart automatically.
